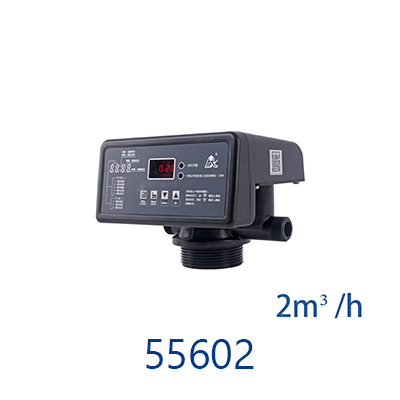

| 55602 |
3/4" (20NB) |
2000 Lph |
Top Mount,
Front Face |
Can use for
sand with softener |
3/4"
,1.05" |
2.5"-8NPSM |

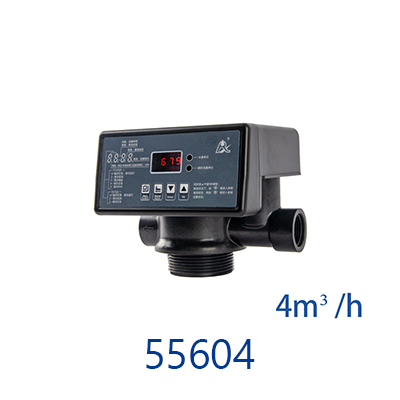

| 55604 |
1"
(25NB) |
4000 Lph |
Top Mount, Front Face |
Can use for sand with
softener |
3/4" ,1.05" |
2.5"-8NPSM |

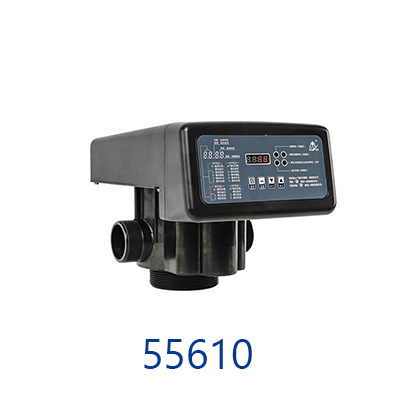

| 55610 |
2"(50NB) |
10000 Lph |
Top Mount, Front Face |
Can use for sand with
softener |
2",1.5"D-GB |
4"-8NPSM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Simple structure and reliable sealingThe distribution valve adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with Service, Backwash, Brine & Slow Rinse, Fast Rinse and Brine Refill.No water pass the valve in regeneration in single tank type.Manual functionRealize regeneration immediately by pushing manual button “Manual/Return” at any time.Long outage indicatorIf outage overrides 3 days, the time of day indicator “12:12” will flash to remind people to reset new time of day. The other set parameters do not need to reset. The process will continue to work after power on.The valve will automatically rotate for more than ten seconds after it is electrifiedAfter the valve is electrified, it will automatically rotate for more than ten seconds to turn back to the position when the electricity is cut off.Buttons lockNo operations to buttons on the controller within 1 minute, button lock indicator lights on which represents buttons are locked. Before operation, press and hold the “Up” and “Down” buttons for 5 seconds to unlock. This function can avoid incorrect operation.Interval backwash times It could set up interval backwash times for up-flow regeneration valve, which means several times of services but one time of backwash. The setting of interval backwash times depends on the local water turbidity. (The lower the turbidity is, the longer of the interval backwash times can be set)It can choose time clock type or meter type by program selectionWhen all symbols light on, press and hold “Manual/Return” and “Menu/Confirm” buttons for 5 seconds to enter the menu of valve model selection. Please set the program type in accordance with the product type. (Tim clock type by days or meter type) (Notice: The meter type product has one flow meter and flow meter cable, but the time clock type does not ).
Additional Information:
| Q Series Automatic Filter Valve For Iron Removal & Media Filter- Meter Type (Volume Type) |
55602 ,
55604 ,
55610 |
